Pace - One™ ZSC Zone Speed Control System for Forklifts & Industrial Vehicles
Multiple Zones
The PACE-ONE™ ZSC offers up to six different zones and speeds. It is built on the PACE-ONE™ speed limiter, but with added zone controls.
Efficient Speed Control
The PACE-ONE™ ZSC can greatly improve productivity in environments where the speed limit is lowered throughout the entire facility, in contrast to the speed limit being lowered only in the required areas of the facility. This will leave fasts zones fast, and slow zones slow.

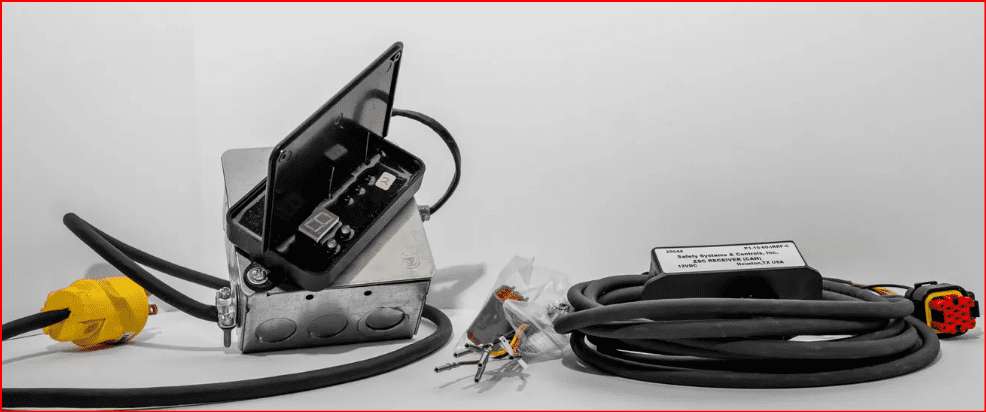

Battery Power/110v Plug
The IR/RF transmitters for the PACE-ONE™ ZSC allow for quick and simple facility installation. With each transmitter requiring only one connection to power. IR/RF transmitters are battery powered but can also be ordered with a 110v plug as well.
Need a Quote?
Give us a call at : (713) 465-8839

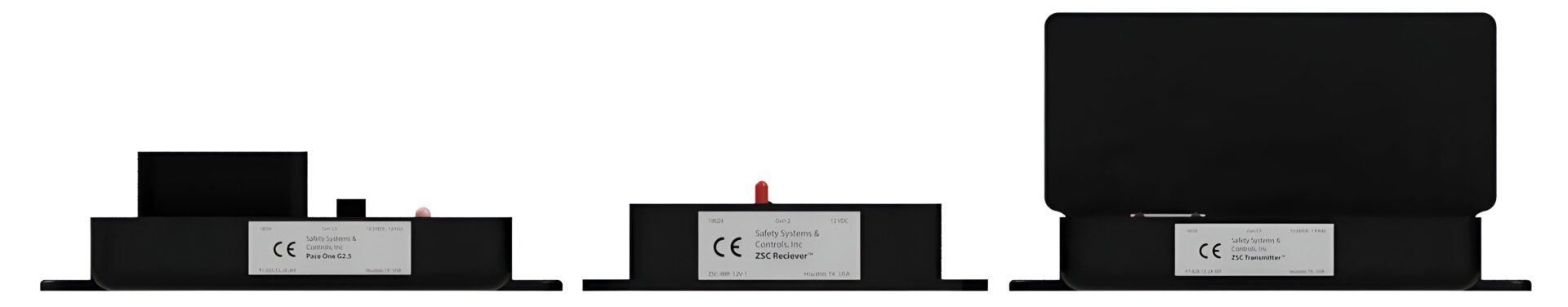

PACE-ONE™ ZSC Zone Speed Control
Technical Specifications
The table below outlines the complete technical specifications for the PACE-ONE™ ZSC Zone Speed Control system:
| Specification | Details |
|---|---|
| Product Name | PACE-ONE™ ZSC Zone Speed Control |
| Product Type | Zone-Based Vehicle Speed Control System |
| Base Platform | Built on the PACE-ONE™ G2 Speed Limiter |
| Number of Zones | Up to 6 programmable speed zones per facility |
| Zone Speed Transmitter | P1 Zone Speed Transmitter™ — fixed-location, dual transmitter module (one per direction) |
| Zone Speed Receiver | P1 Zone Speed Receiver™ — vehicle-mounted; detects zone signals and relays to PACE-ONE™ G2 |
| Signal Type | Modulated infrared (IR) signal; encoded to reduce interference |
| Communication Method | Line-of-sight IR between transmitter and receiver |
| RF Option | IR/RF transmitters are available |
| Transmitter Power | Battery powered; optional 110V plug-in version available |
| Zone Programming | Single-button programming during power-up; numeric display shows zone selection |
| Zones per Transmitter | Each transmitter broadcasts 1 zone at a time (out of 6 configurable zones) |
| Directional Control | Each P1 module has 2 individual transmitters — one per direction of travel |
| Zone Memory | Stores last detected zone; retrieved on ignition restart |
| External Trigger Input | Supports external trigger (optical, RF, etc.) for pedestrian proximity override |
| Priority Override | External trigger overrides zone detection and applies priority speed/zone automatically |
| Status Indicator | Green Status OK LED (low duty-cycle blink to conserve power) |
| Transmitter Quantity | No limit on number of transmitters; fully scalable across facility |
| Transmitter Flexibility | All transmitters are easily configurable and movable for changing layouts |
| Vehicle ECU Integration | PACE-ONE™ G2 receives zone signals and outputs throttle-reduction signals to ECU |
| Stand-Alone Capability | PACE-ONE™ G2 can operate independently without ZSC for non-zone applications |
| Vehicle Compatibility | Internal combustion (IC) and electric vehicles |
| Programmer | μCal™ programmer compatible (sold separately) |
| Facility Installation | Quick and simple; each transmitter requires only one power connection |
| Contact | (713) 465-8839 | ssc@loadingzonesafety.com |
How It Works
Programmable Zones
Transmitters can be placed throughout the facility in order to achieve desired zones with set speed limits. By increasing the amount of transmitters in the facility, a more complex geometry can be achieved for a zone.

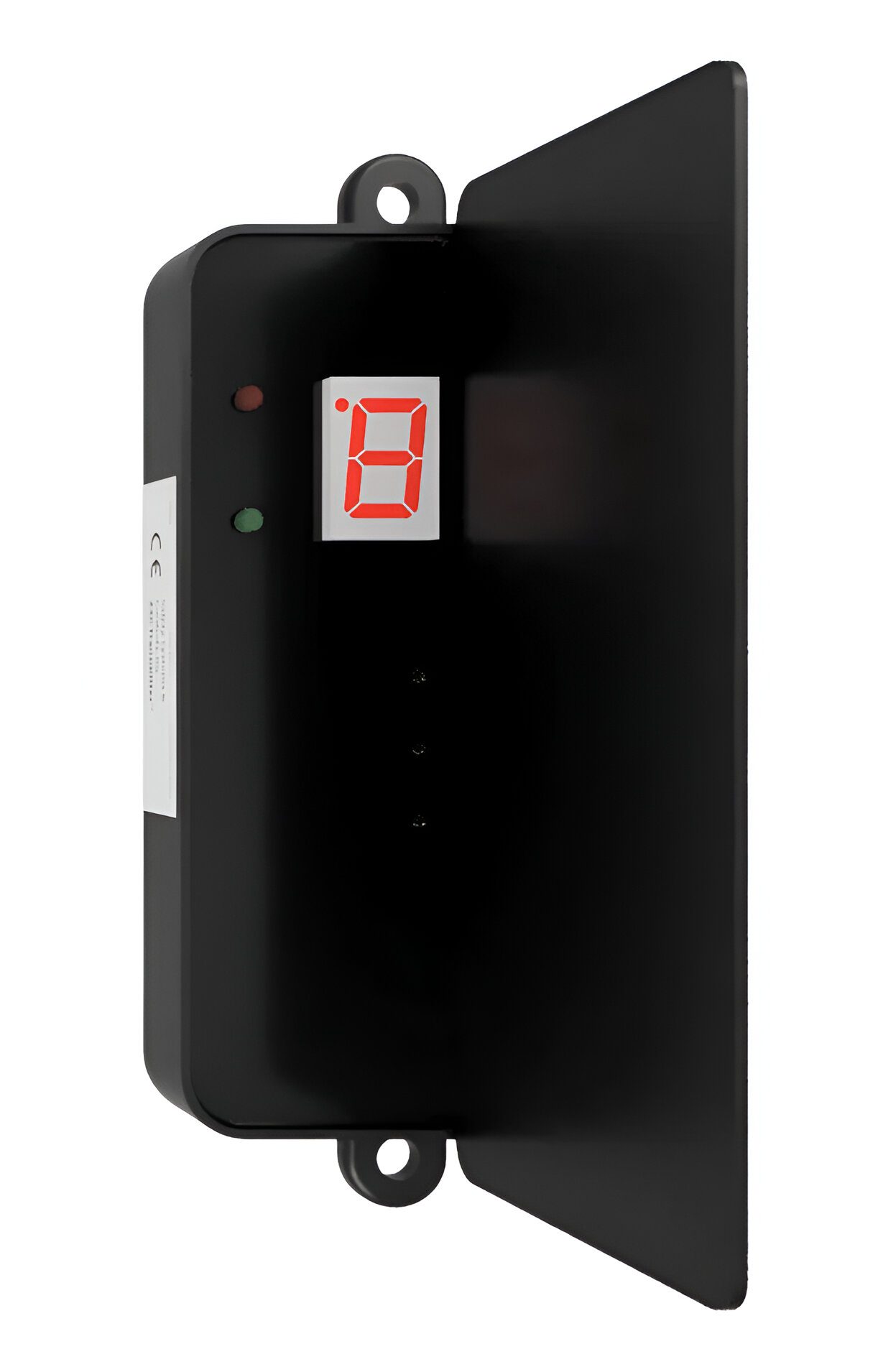

P1 Zone Speed Transmitter™
- The P1 Zone Speed Transmitter™ is installed in a fixed location to define a geographical speed zone.
- The location is typically chosen at a boundary between 2 speed zones. Each P1 Zone Speed Transmitter™ module has 2 individual transmitters.
- One of the transmitters broadcasts a speed zone in one direction.
- The other broadcasts another speed zone in the opposite direction.
- A Zone Speed Receiver™ that is exposed to these zone speed broadcasts are able to detect the zone boundary and change the allowable maximum speed as it transitions from one speed zone to another.
- No limit to the number of transmitters.
- All transmitters are easily configurable and movable to adapt to changing applications.
Simple Zone Configuration & Power-Efficient Monitoring
- All of the transmitters are capable of transmitting 6 different zones.
- Only 1 zone can be transmitted by each transmitter at a time. The specific zone that each transmitter in the P1 Zone Speed Transmitter™ module is transmitting is programmed with a single button during power-up.
- The single button is located next to a numeric display on the P1 Zone Speed Transmitter™ module. The numeric display indicates the current zone selection.
- It also shows the selected zone during programming. The display only shows the zone information during power-up/start-up to conserve power.
- A Green Status OK light Indicates that everything is working during normal operation. The green status light is blinking with a relatively low duty cycle to conserve power.

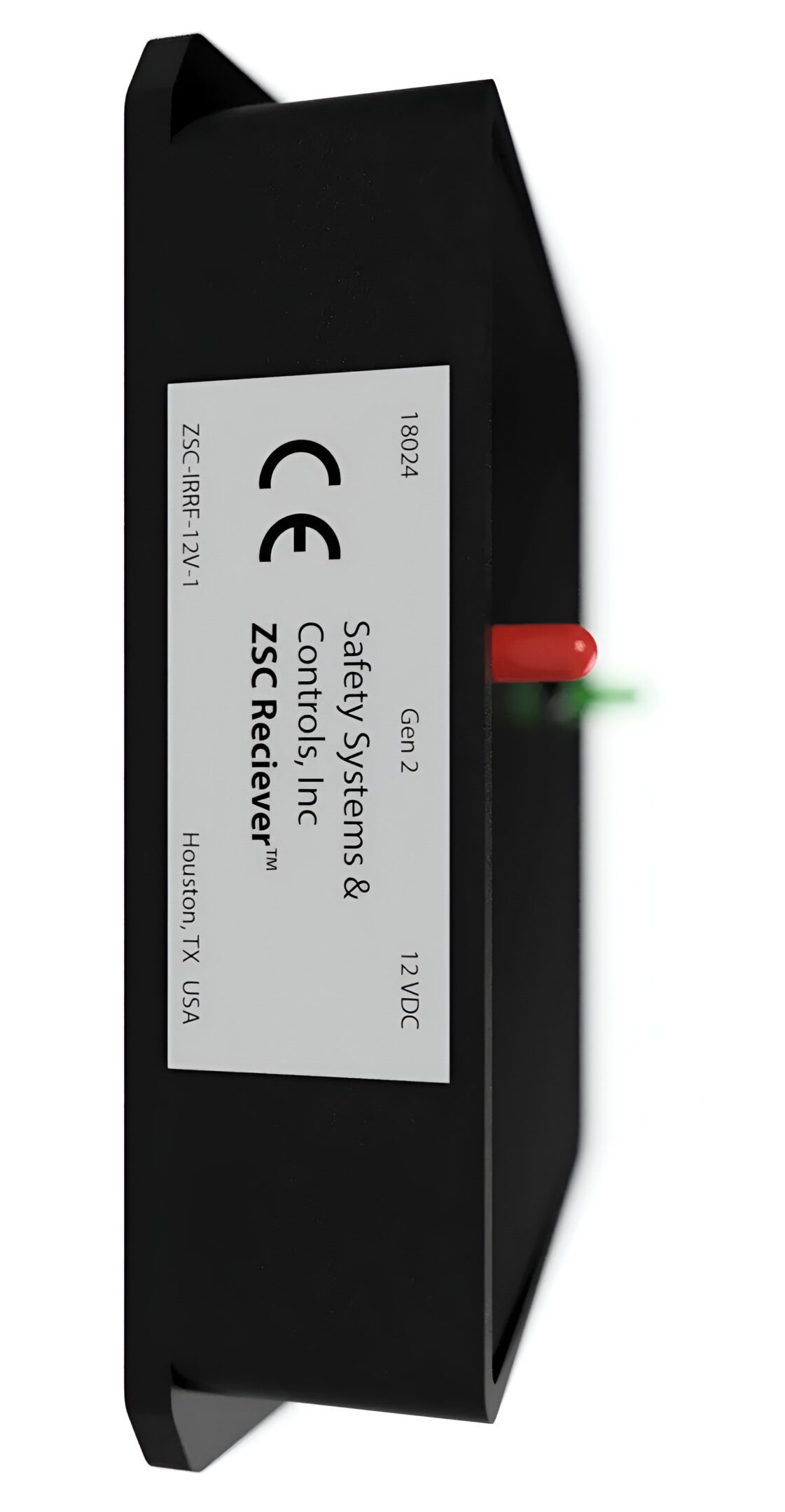

P1 Zone Speed Receiver™
The P1 Zone Speed Control Receiver™ detects signals (from the P1 Zone Speed Transmitter™) that define geographical zones in a vehicle environment. The signals define up to 6 different zones. The zone information is also transmitted to a Pace1™ speed controller.
An input signal is also provided to trigger an external event, such as pedestrian proximity. An optical, RF, etc. receiver module may be connected to this external trigger signal to facilitate proximity sensing. The external trigger signal overrides any other zone detection and automatically applies to prioritized speed/zone. Normal zone detection resumes automatically when the external trigger signal is no longer asserted.
Zone Memory
The P1 Zone Speed Receiver™ also features a zone memory. The most recently detected zone is stored in memory when the ignition key is turned off. The stored zone is retrieved from memory when the P1 Zone Speed Receiver™ is powered up again (by turning the ignition key on). The P1 Zone Speed Receiver™ utilizes a modulated infrared signal to carry the zone information from the stationary zone.
Speed Transmitter™. The signal is also encoded to further reduce possible interference. The infrared signal medium necessitates line-of-sight communication between the P1 Zone Speed Transmitter™ and the P1 Zone Speed Receiver™.
Pace-One™ G2
The PACE-ONE™ G2 ties the system together by receiving the acquired signals from the P1 Zone Speed Receiver™ and outputting the correct signals to the vehicle ECU in order to reduce throttle when needed. The PACE-ONE™ G2 can also be a stand-alone system in cases where zone speed limiting is not required. Click here to learn more about our PACE-ONE™ G2 speed limiter.
Frequently Asked Questions
Do You Have the Programmer?
Click the button to get more information on our μCal™ programmer. With this device you can program any of our programmable products.
